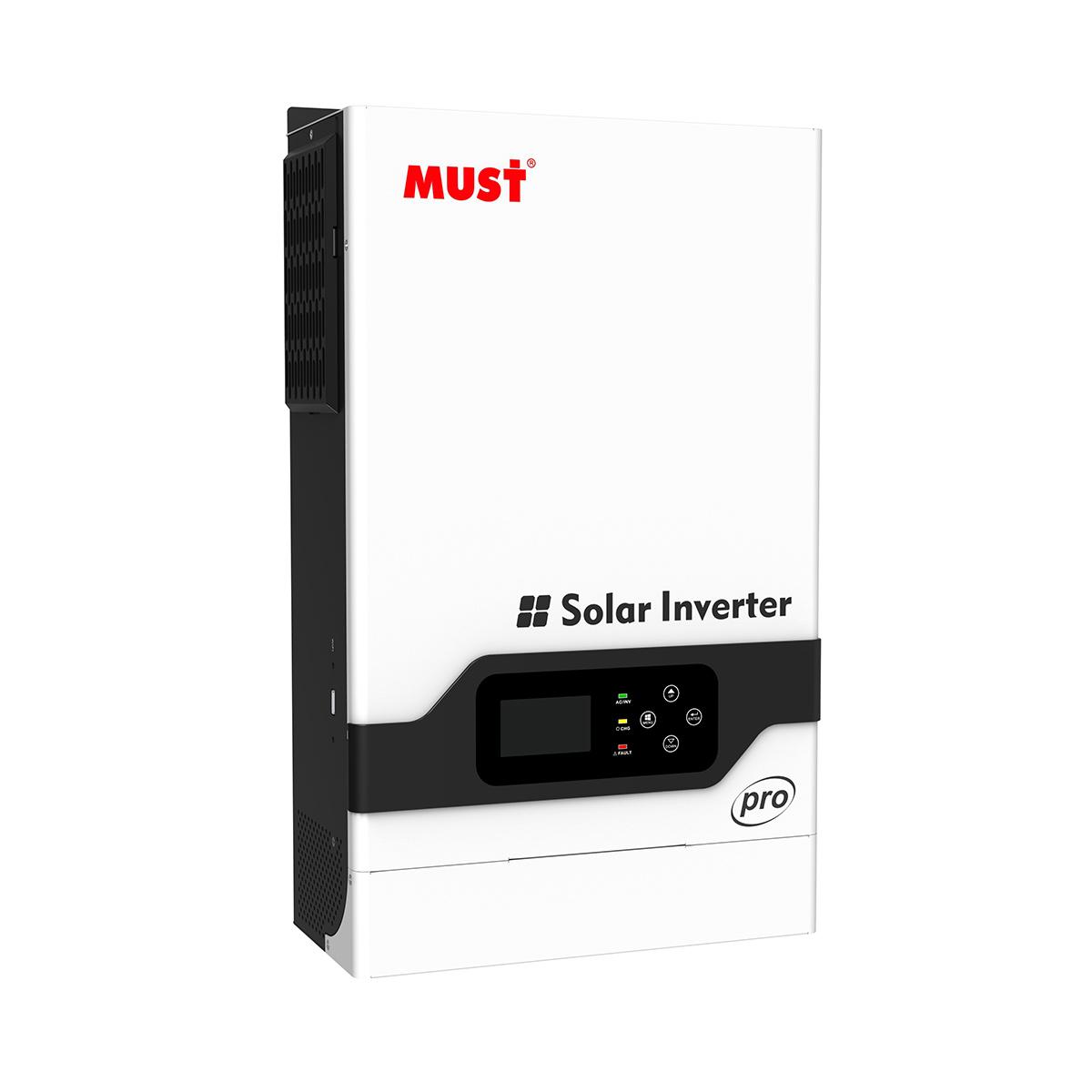

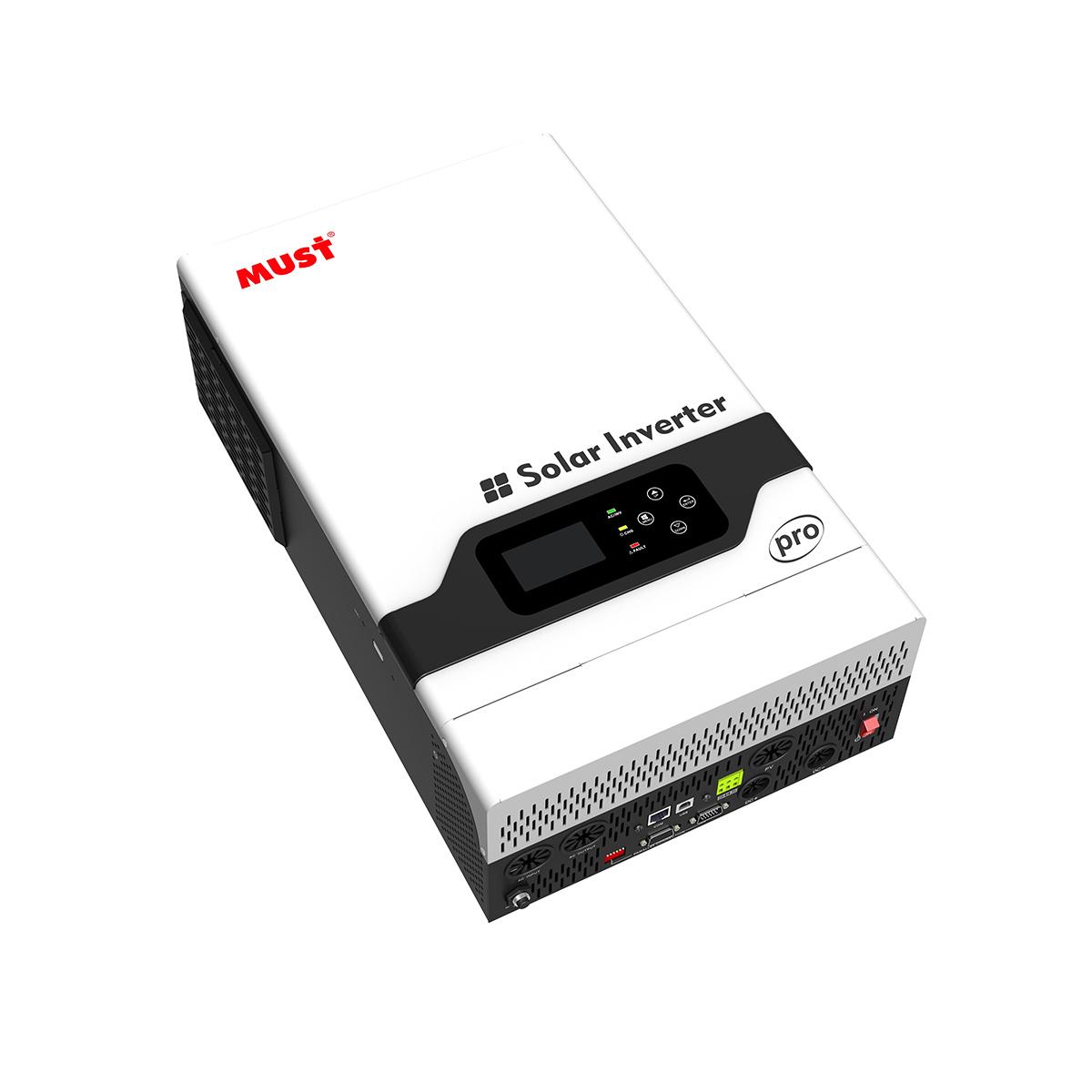

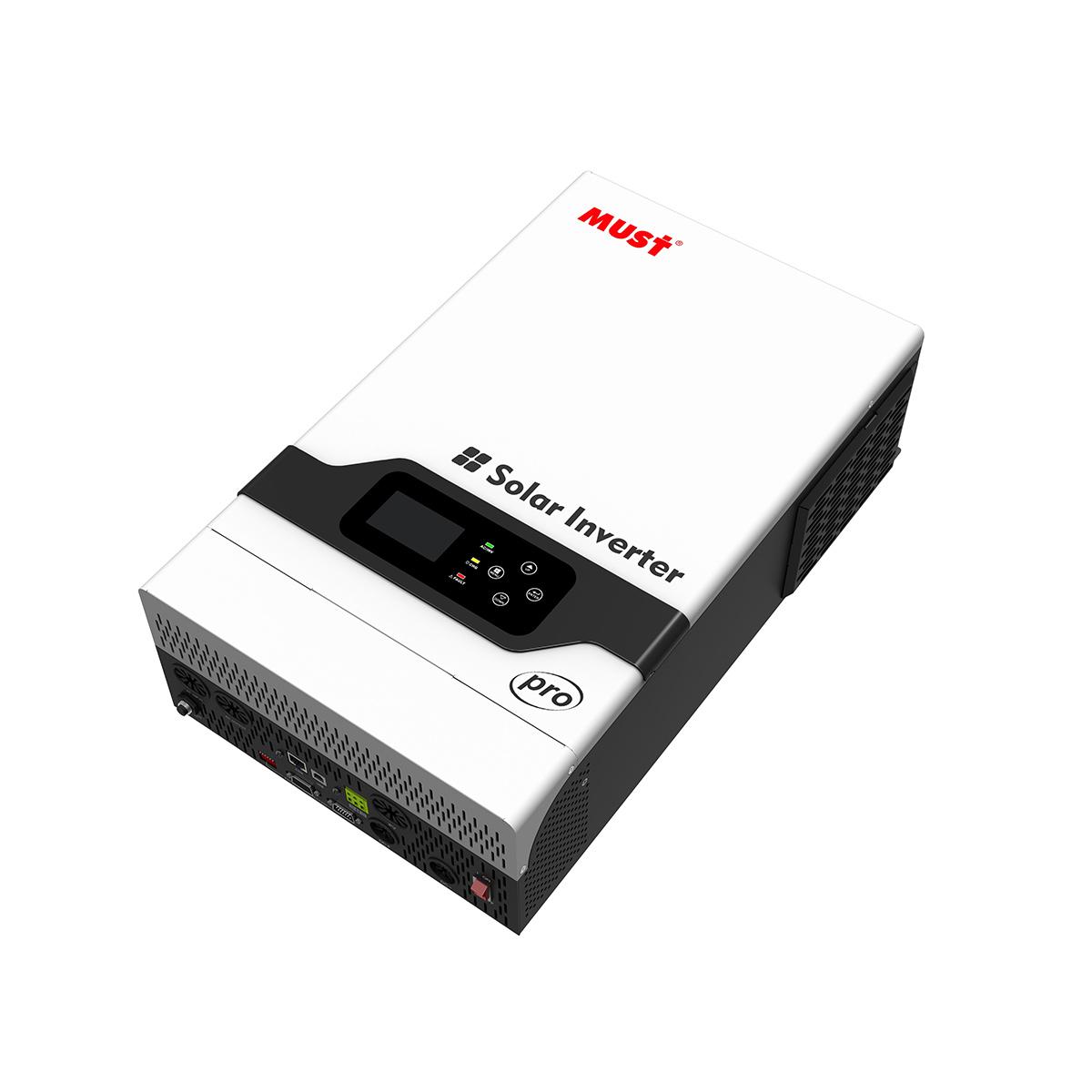

Description
Features:
■ Pure sine wave output
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in MPPT solar charge controller
■ MAX PV Array Open Circuit Voltage: 450V

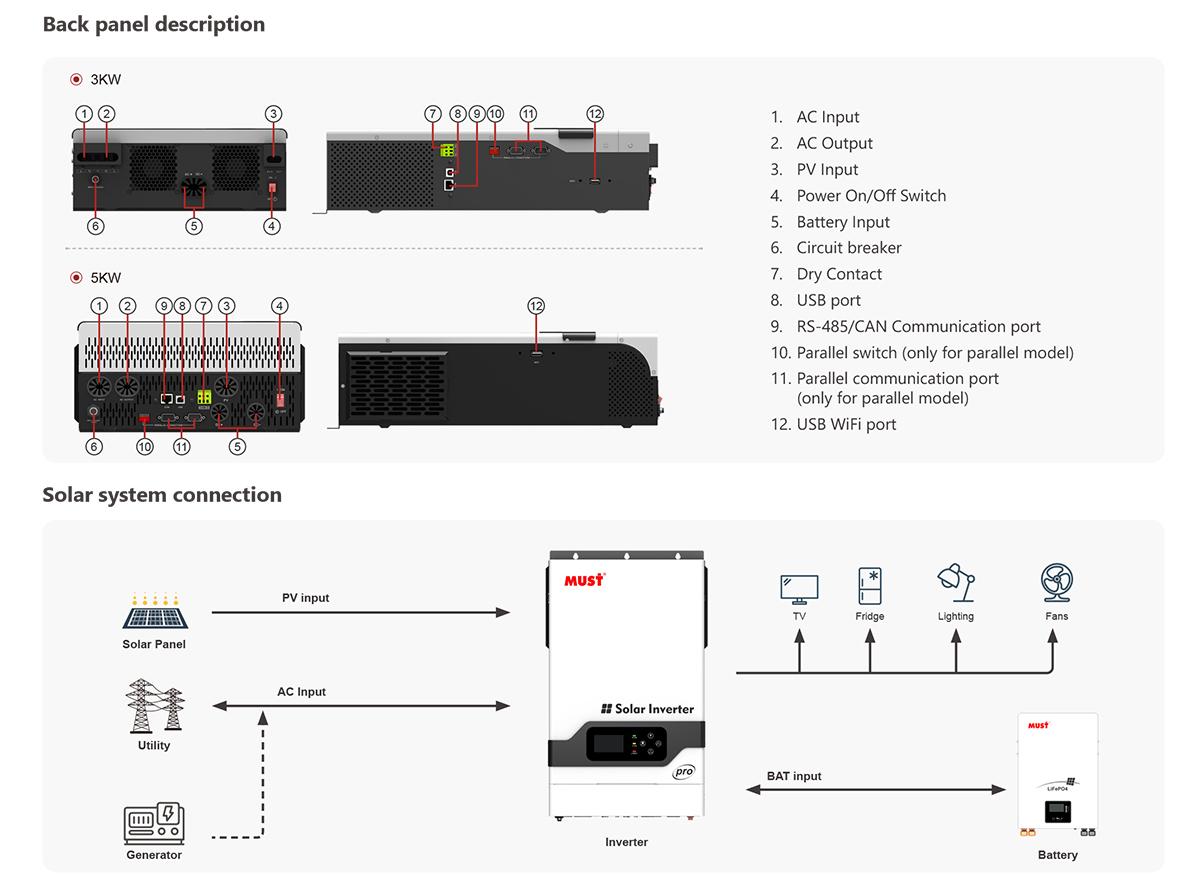

■ Combining solar system, AC utility, and battery power source to supply continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function
■ Support USB, RS485 monitoring function
■ Parallel operation with up to 3 units
■ WIFI remote monitoring (optional)
| MODEL | PH18-3024 PRO | PH18-5248 PRO | ||
| Nominal Battery System Voltage | 24VDC | 48VDC | ||
| INVERTER OUTPUT | ||||
| Rated Power | 3000VA / 3000W | 5200VA / 5200W | ||
| Surge Power | 6000W | 10400W | ||
| Waveform | Pure sine wave | |||
| AC Voltage Regulation (Batt.Mode) | 230VAC±5%(Setting) | |||
| Inverter Efficiency(Peak) | 90% | |||
| Transfer Time | 10ms (UPS / VDE4105) / 20ms (APL) | |||
| AC INPUT | ||||
| Voltage | 230VAC±5% | |||
| Selectable Voltage Range | 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105) | |||
| Frequency Range | 50Hz / 60Hz(Auto sensing) | |||
| BATTERY | ||||
| Normal voltage | 24VDC | 48VDC | ||
| Floating Charge Voltage | 27.4VDC | 54.8VDC | ||
| Overcharge Protection | 30VDC | 60VDC | ||
| SOLAR CHARGER & AC CHARGER | ||||
| Maximum PV Array Open Circuit Voltage | 450VDC | |||
| Maximum PV input voltage | 18A | 18A | 27A | |
| Charging Algorithm | 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li) | |||
| Maximum PV Array Power | 4000W | 5000W | 6000W | |
| PV Array MPPT Voltage Range | 150~430 VDC | |||
| Maximum Solar Charge Current | 80A | 100A | 80A | 100A |
| Maximum AC Charge Current | 60A | 80A | 60A | 80A |
| Maximum Charge Current | 80A | 100A | 80A | 100A |
| MECHANICAL SPECIFICATIONS | ||||
| Machine Dimension (W*H*D) | 322*486*134mm | 309*505*147mm | ||
| Package Dimension (W*H*D) | 575*229*425mm | 603*260*400mm | ||
| )N.W (kg) | 10.6kg | 12.9kg | ||
| G.W (kg | 12kg | 13.8kg | ||
| OTHER | ||||
| Humidity | 5% to 95% Relative humidity (Non-condensing) | |||
| Operating Temperature | 0°C~50°C | |||
| Storage Temperature | -15℃ ~60℃ | |||
| CERTIFICATION & STANDARDS | ||||
| CE-EMC+LVD (EN6100-6-3:2007, EN6100-6-1:2017+EN IEC62109-1:2010, EN IEC62109-2:2011) EN IEC62368-1:2020+A11:2020
EN IEC62368-1:2018 Rohs-(2011/65/EUand2015/863/EU) |
||||
